DEM 20488 SYH-PY | Display Elektronik

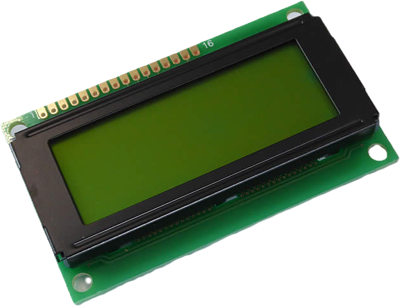

LCD display, 20 x 4 character, STN yellow/green, viewing area: 60 x 22 mm, DEM 20488 SYH-PY
Order No.: 73S0012
EAN: 4099891975777
MPN:
DEM 20488 SYH-PY
Unit Price (€ / pc.)
17.1241 € *
Available: 10 pcs.
Total Price:
17.12 € *
Price list
Quantity
Price per unit*
1 pcs.
17.1241 €
84 pcs.
14.3871 €
*incl. VAT plus shipping costs
Subject to prior sale
LCD Module, DEM 20488 SYH-PY, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power Supply Voltage: 5.0 V
- VLCD: 4.5 Volt
- Easy Interface with a 4-bit or 8-bit MPU
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 60 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 47 mm | |
| Technology | STN yellow/green | |
| Thickness | 7.6 mm | |
| IC controller/driver | HD44780 compatible | |
| MPU interface | 8-Bit-MCU | |
| Width | 77 mm | |
| Display | 20 x 4 character | |
| Background color | yellow/green | |
| Character set | English-Japanese | |
| Image | positive | |
| Viewing range (height) | 22 mm | |
| type of backlight | LED | |
| Character height | 4.03 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
