DEM 20487 SYH-LY | Display Elektronik

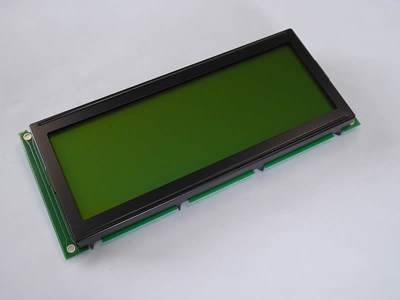

Alphanumeric display, 4 lines x 20 character, STN yellow/green, viewing area: 123 x 42.5 mm, DEM 20487 SYH-LY
Order No.: 71S343
EAN: 4099879004017
MPN:
DEM 20487 SYH-LY
No longer in assortment
Unit Price (€ / pc.)
30.6425 € *
Standard delivery time from the manufacturer is: 1 Week
LCD-Module, DEM 20486 SYH-LY, Display Elektronik
FEATURES
- Power Supply Voltage 5.0 V
- Driving Scheme : 1/16 Duty Cycle, 1/5 Bias
- Viewing Direction: 6 O’clock
- Display Format: 20x4 Characters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| type of backlight | LED | |
| MPU interface | 8-Bit-MCU | |
| Thickness | 11.1 mm | |
| Display | 4 lines x 20 character | |
| Background color | yellow | |
| Image | positive | |
| Technology | STN yellow/green | |
| Height | 62.5 mm | |
| max. operating temperature | 70 °C | |
| Character set | English-Japanese | |
| IC controller/driver | HD44780 compatible | |
| Character height | 9.23 mm | |
| Viewing area (width) | 123 mm | |
| Viewing range (height) | 42.5 mm | |
| min. operating temperature | -20 °C | |
| Width | 146 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
