DEM 20486 SYH-LY-CYR22 | Display Elektronik

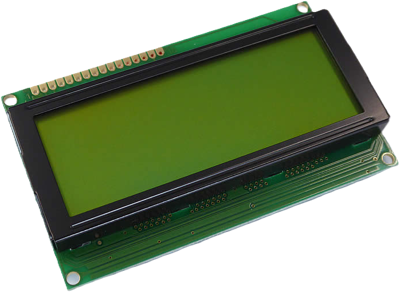

LCD display, 20 x 4 character, STN yellow/green, viewing area: 85 x 30.5 mm, DEM 20486 SYH-LY-CYR22
Order No.: 73S0028
EAN: 4099891975937
MPN:
DEM 20486 SYH-LY-CYR22
Unit Price (€ / pc.)
20.2776 € *
Available: 0 pcs.
Leadtime: 1 Week **
LCD Module, DEM 20486 SYH-LY-CYR22, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power Supply Voltage: 5.0 V
- Backlight Color: LED, Lightbox, Yellow-Green
- Easy Interface with a 4-bit or 8-bit MPU
Technical specifications
| Background color | yellow/green | |
| Viewing area (width) | 85 mm | |
| Thickness | 11.6 mm | |
| Image | positive | |
| Technology | STN yellow/green | |
| Width | 98 mm | |
| Height | 60 mm | |
| IC controller/driver | HD44780 compatible | |
| Character set | English Cyrillic | |
| min. operating temperature | -20 °C | |
| Character height | 6.35 mm | |
| MPU interface | 8-Bit-MCU | |
| max. operating temperature | 70 °C | |
| type of backlight | LED | |
| Display | 20 x 4 character | |
| Viewing range (height) | 30.5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
