DEM 20485 SYH-LY | Display Elektronik

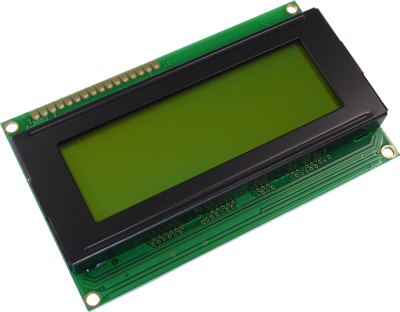

Alphanumeric display, 4 lines x 20 character, STN yellow/green, viewing area: 76.3 x 25 mm, DEM 20485 SYH-LY
Order No.: 71S341
EAN: 4099879003997
MPN:
DEM 20485 SYH-LY
Unit Price (€ / pc.)
16.5648 € *
Available: 1 pcs.
Total Price:
16.56 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5648 €
5 pcs.
15.5652 €
*incl. VAT plus shipping costs
Subject to prior sale
LCD-Module, DEM 20485 SYH, Display Elektronik
FEATURES
- Power Supply Voltage 5.0 V
- Driving Scheme : 1/16 Duty Cycle, 1/5 Bias
- Viewing Direction: 6 O’clock
- Display Format: 20x4 Characters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 76.3 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 60 mm | |
| Technology | STN yellow/green | |
| Thickness | 11.6 mm | |
| IC controller/driver | HD44780 compatible | |
| MPU interface | 8-Bit-MCU | |
| Width | 98 mm | |
| Display | 4 lines x 20 character | |
| Character set | English-Japanese | |
| Image | positive | |
| Viewing range (height) | 25 mm | |
| type of backlight | LED | |
| Character height | 4.75 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
