DEM 20232 SYH-LY | Display Elektronik

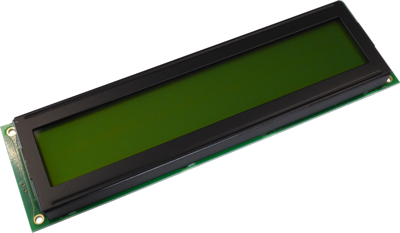

Alphanumerisches Display 2x20 STN LED wide-temp. DEM 20232 SYH-LY

Order No.: 71S338
EAN: 4099879003966
MPN:
DEM 20232 SYH-LY
Display Elektronik
default L
Image may differ
Print
Key Specification:
Display 2 x 20 character
Technology STN yellow/green
Character set English-Japanese
Character height 8.3 mm
Viewing area (width) 123.2 mm
Show 20 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
18.7187 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
18.72 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
18.7187 €
Description
Technical specifications
Download
Compliance
Variations

LCD-Module, DEM 20231 SYH-PY-CYR22, Display Elektronik

FEATURES

  • Power Supply Voltage 5.0 V
  • Driving Scheme : 1/16 Duty Cycle, 1/5 Bias
  • Viewing Direction: 6 O’clock
  • Display Format: 20x2 Characters
Technical specifications
Display 2 x 20 character
Viewing area (width) 123.2 mm
Viewing range (height) 23 mm
Width 146 mm
Thickness 11.1 mm
type of backlight LED
Background color yellow/green
Height 43 mm
IC controller/driver HD44780 compatible
Image positive
max. operating temperature 70 °C
min. operating temperature -20 °C
MPU interface 8-Bit-MCU
Technology STN yellow/green
Character height 8.3 mm
Character set English-Japanese
Show similar products 0
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
