DEM 20231 SYH-PY | Display Elektronik

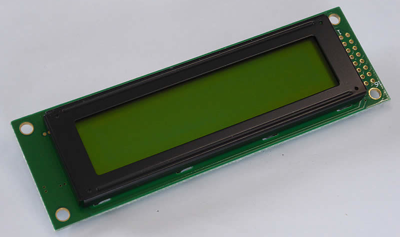

Alphanumeric display, 2 x 20 character, STN yellow/green, viewing area: 83 x 18.6 mm, DEM 20231 SYH-PY

Order No.: 71S337
EAN: 4099879003959
MPN:
DEM 20231 SYH-PY
Display Elektronik
DEM 20231 SYH-PY Display Elektronik LED-Modules
Image may differ
Print
Key Specification:
Display 2 x 20 character
Technology STN yellow/green
Character set English-Japanese
Character height 5.55 mm
Show variants: 3
Download Datasheet Technical specifications
Unit Price (€ / pc.)
17.3502 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1,249.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
72 pcs.
17.3502 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

LCD-Module, DEM 20121 SYH-LY, Display Elektronik

FEATURES

  • Power Supply Voltage 5.0 V
  • Driving Scheme : 1/8 Duty Cycle, 1/4 Bias
  • Viewing Direction: 6 O’clock
  • Display Format: 20x1 Characters
Technical specifications
Viewing area (width) 83 mm
max. operating temperature 70 °C
min. operating temperature -20 °C
Height 37 mm
Technology STN yellow/green
Thickness 8.6 mm
IC controller/driver HD44780 compatible
MPU interface 8-Bit-MCU
Width 116 mm
Display 2 x 20 character
Background color yellow/green
Character set English-Japanese
Image positive
Viewing range (height) 18.6 mm
type of backlight LED
Character height 5.55 mm
Articles of same specification 0
Logistics
Customs tariff number 85249100
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
