DEM 20121 SYH-LY | Display Elektronik

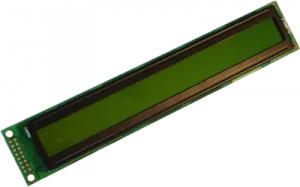

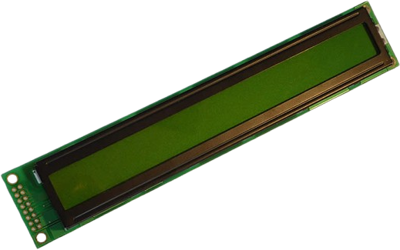

LCD display, 20 x 1 character, STN yellow/green, viewing area: 155.1 x 16 mm, DEM 20121 SYH-LY
Order No.: 73S0011
EAN: 4099891975760
MPN:
DEM 20121 SYH-LY
Unit Price (€ / pc.)
23.3597 € *
Standard delivery time from the manufacturer is: 1 Week
LCD Module, DEM 20121 SYH-LY, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power Supply Voltage: 2.7 V to 5.0 V
- Backlight color: Yellow-Green
- Easy Interface with a 4-bit or 8-bit MPU
Technical specifications
| max. operating temperature | 70 °C | |
| Height | 33.5 mm | |
| IC controller/driver | HD44780 compatible | |
| Character height | 11.5 mm | |
| Character set | English-Japanese | |
| Display | 20 x 1 character | |
| Image | positive | |
| Viewing range (height) | 16 mm | |
| Viewing area (width) | 155.1 mm | |
| type of backlight | LED | |
| Width | 182 mm | |
| Thickness | 11.6 mm | |
| Technology | STN yellow/green | |
| min. operating temperature | -20 °C | |
| Background color | yellow/green | |
| MPU interface | 8-Bit-MCU |
Download
Logistics
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
