DEM 16227 SYH-LY | Display Elektronik

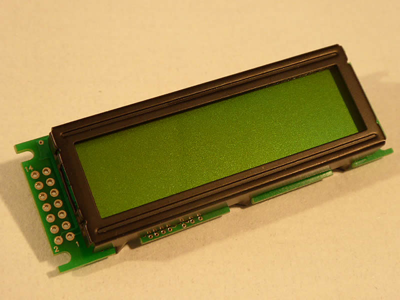

Alphanumeric display, 2 x 16 character, STN yellow/green, viewing area: 65 x 17.2 mm, DEM 16227 SYH-LY
Order No.: 71S331
EAN: 4099879003935
MPN:
DEM 16227 SYH-LY
Unit Price (€ / pc.)
12.3165 € *
Standard delivery time from the manufacturer is: On Request
LCD-Module, DEM 16226 SYH-LY, Display Elektronik
FEATURES
- Power Supply Voltage 5.0 V
- Driving Scheme : 1/16 Duty Cycle, 1/5 Bias
- Viewing Direction: 6 O’clock
- Display Format: 16x2 Characters
Technical specifications
| Background color | yellow/green | |
| Viewing area (width) | 65 mm | |
| Thickness | 10.6 mm | |
| Image | positive | |
| Technology | STN yellow/green | |
| Width | 85 mm | |
| Height | 30 mm | |
| IC controller/driver | HD44780 compatible | |
| Character set | English-Japanese | |
| min. operating temperature | -20 °C | |
| Character height | 4.35 mm | |
| MPU interface | 8-Bit-MCU | |
| max. operating temperature | 70 °C | |
| type of backlight | LED | |
| Display | 2 x 16 character | |
| Viewing range (height) | 17.2 mm |
Download
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
