DEM 16218 SGH | Display Elektronik
LCD display, 16 x 2 character, STN-gray, viewing area: 50 x 16 mm, DEM 16218 SGH
Order No.: 73S0005
EAN: 4099891975708
MPN:
DEM 16218 SGH
Unit Price (€ / pc.)
13.9825 € *
Available: 0 pcs.
Leadtime: 1 Week **

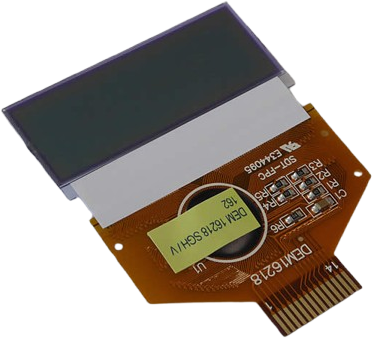

LCD Module, DEM 16218 SGH, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power Supply Voltage: 5.0 V
- VLCD: 4.5 Volt
- Easy Interface with a 4-bit or 8-bit MPU
Technical specifications
| Viewing area (width) | 50 mm | |
| Thickness | 4.2 mm | |
| Image | positive | |
| Technology | STN-gray | |
| Width | 55 mm | |
| Height | 24.5 mm | |
| IC controller/driver | HD44780 compatible | |
| Character set | English-Japanese | |
| min. operating temperature | -20 °C | |
| Character height | 5.55 mm | |
| MPU interface | 8-Bit-MCU | |
| max. operating temperature | 70 °C | |
| type of backlight | without | |
| Display | 16 x 2 character | |
| Viewing range (height) | 16 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
