DEM 16217 SYH-LY | Display Elektronik

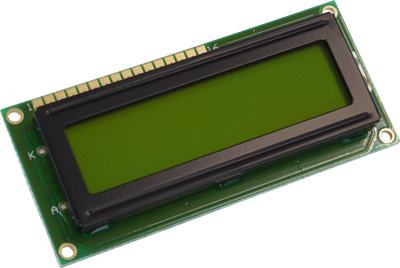

Alphanumeric display, 2 x 16 character, STN yellow/green, viewing area: 61 x 15.8 mm, DEM 16217 SYH-LY
Order No.: 71S323
EAN: 4099879003881
MPN:
DEM 16217 SYH-LY
Unit Price (€ / pc.)
10.8171 € *
Available: 4 pcs.
Total Price:
10.82 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8171 €
10 pcs.
10.3173 €
25 pcs.
9.8413 €
50 pcs.
9.4010 €
*incl. VAT plus shipping costs
Subject to prior sale
LCD-Module, DEM 16217 SYH, Display Elektronik
FEATURES
- Power Supply Voltage 5.0 V
- Driving Scheme : 1/16 Duty Cycle, 1/5 Bias
- Viewing Direction: 6 O’clock
- Display Format: 16x2 Characters
Technical specifications
| Background color | yellow/green | |
| Viewing area (width) | 61 mm | |
| Thickness | 10.1 mm | |
| Image | positive | |
| Technology | STN yellow/green | |
| Width | 84 mm | |
| Height | 44 mm | |
| IC controller/driver | HD44780 compatible | |
| Character set | English-Japanese | |
| min. operating temperature | -20 °C | |
| Character height | 5.55 mm | |
| MPU interface | 8-Bit-MCU | |
| max. operating temperature | 70 °C | |
| type of backlight | LED | |
| Display | 2 x 16 character | |
| Viewing range (height) | 15.8 mm |
Download
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
