DEM 16217 FGH-P(RGB) | Display Elektronik

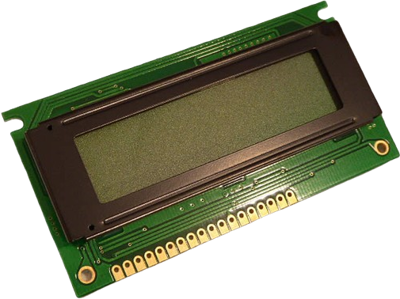

LCD display, 16 x 2 character, FSTN, viewing area: 61 x 15.8 mm, DEM 16217 FGH-P(RGB)
Order No.: 73S0053
EAN: 4099891976187
MPN:
DEM 16217 FGH-P(RGB)
Unit Price (€ / pc.)
23.6810 € *
Available: 10 pcs.
Total Price:
23.68 € *
Price list
Quantity
Price per unit*
1 pcs.
23.6810 €
105 pcs.
14.6370 €
*incl. VAT plus shipping costs
Subject to prior sale
LCD Module, DEM 16217 FGH-P(RGB), Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power Supply Voltage: 5.0 Volt
- Backlight color: LED, Lightguide, RGB
- Easy Interface with a 4-bit or 8-bit MPU
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 61 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 44 mm | |
| Technology | FSTN | |
| Thickness | 7.6 mm | |
| IC controller/driver | HD44780 compatible | |
| MPU interface | 8-Bit-MCU | |
| Width | 84 mm | |
| Display | 16 x 2 character | |
| Background color | RGB | |
| Character set | English-Japanese | |
| Image | positive | |
| Viewing range (height) | 15.8 mm | |
| type of backlight | LED | |
| Character height | 5.55 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
