DEM 16216 SGH | Display Elektronik

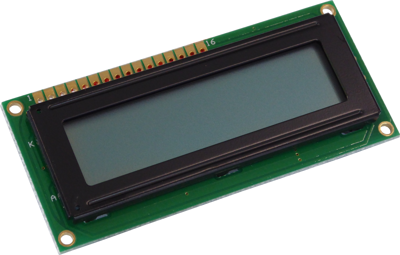

Alphanumeric display, 2 x 16 character, STN-gray, viewing area: 61 x 15.8 mm, DEM 16216 SGH
Order No.: 71S319
EAN: 4099879003843
MPN:
DEM 16216 SGH
Unit Price (€ / pc.)
7.2352 € *
Standard delivery time from the manufacturer is: On Request
LCD-Module, DEM 16215 SYH-LY-CYR22, Display Elektronik
FEATURES
- Power Supply Voltage 5.0 V
- Driving Scheme : 1/16 Duty Cycle, 1/5 Bias
- Viewing Direction: 6 O’clock
- Display Format: 16x2 Characters
Technical specifications
| Viewing range (height) | 15.8 mm | |
| type of backlight | without | |
| Display | 2 x 16 character | |
| Technology | STN-gray | |
| Character height | 5.55 mm | |
| Width | 80 mm | |
| Character set | English-Japanese | |
| Thickness | 7.1 mm | |
| MPU interface | 8-Bit-MCU | |
| Height | 36 mm | |
| max. operating temperature | 70 °C | |
| Image | positive | |
| min. operating temperature | -20 °C | |
| IC controller/driver | HD44780 compatible | |
| Viewing area (width) | 61 mm |
Download
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
