DEM 16103 SYH-LY | Display Elektronik

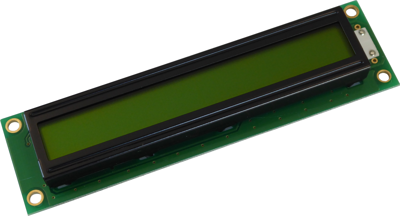

Alphanumeric display, 1 x 16 character, STN yellow/green, viewing area: 99 x 13 mm, DEM 16103 SYH-LY
Order No.: 71S310
EAN: 4099879003805
MPN:
DEM 16103 SYH-LY
Unit Price (€ / pc.)
12.2927 € *
Standard delivery time from the manufacturer is: 1 Week
LCD-Module, DEM 16102 SYH-PY, Display Elektronik
FEATURES
- Power Supply Voltage 5.0 V
- Driving Scheme : 1/16 Duty Cycle, 1/5 Bias
- Viewing Direction: 6 O’clock
- Display Contents :16x1 Characters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 99 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 33 mm | |
| Technology | STN yellow/green | |
| Thickness | 11.1 mm | |
| IC controller/driver | HD44780 compatible | |
| MPU interface | 8-Bit-MCU | |
| Width | 122 mm | |
| Display | 1 x 16 character | |
| Background color | yellow/green | |
| Character set | English-Japanese | |
| Image | positive | |
| Viewing range (height) | 13 mm | |
| type of backlight | LED | |
| Character height | 9.68 mm |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
