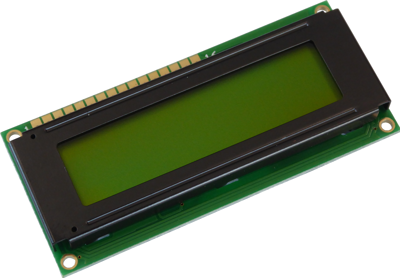

DEM 16102 SYH-PY | Display Elektronik
Alphanumeric display, 1 x 16 character, STN yellow/green, viewing area: 61 x 15.8 mm, DEM 16102 SYH-PY
Order No.: 71S309
EAN: 4099879003799
MPN:
DEM 16102 SYH-PY
Unit Price (€ / pc.)
12.1856 € *
Standard delivery time from the manufacturer is: 1 Week
LCD-Module, DEM 16102 SYH-LY, Display Elektronik
FEATURES
- Power Supply Voltage 5.0 V
- Driving Scheme : 1/16 Duty Cycle, 1/5 Bias
- Temperature (-20 °C to 70 °C)
- Storage temperature (-30 °C to 80 °C)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 1 x 16 character | |
| Technology | STN yellow/green | |
| Character set | English-Japanese | |
| Character height | 7.9 mm | |
| Viewing area (width) | 61 mm | |
| Viewing range (height) | 15.8 mm | |
| type of backlight | LED | |
| Background color | yellow/green | |
| Image | positive | |
| MPU interface | 8-Bit-MCU | |
| IC controller/driver | HD44780 compatible | |
| Thickness | 7.6 mm | |
| Width | 80 mm | |
| Height | 36 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
