DEM 128128D SBH-PW-N | Display Elektronik

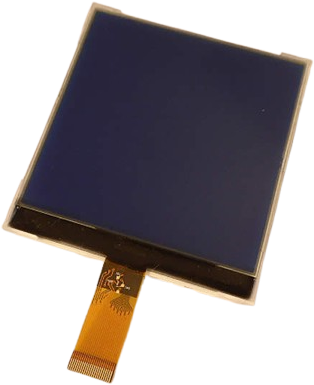

Graphic display, 128 x 128 character, STN blue, viewing area: 66 x 62.5 mm, DEM 128128D SBH-PW-N
Order No.: 73S0127
EAN: 4099891976927
MPN:
DEM 128128D SBH-PW-N
Unit Price (€ / pc.)
18.0642 € *
Standard delivery time from the manufacturer is: 1 Week
LCD Module, DEM 128128D SBH-PW-N, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power Supply Voltage: 3.0 V
- Backlight color: LED, Lightbox, White
- RpHS Compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 74.8 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C | |
| Viewing area (width) | 66 mm | |
| Display | 128 x 128 character | |
| type of backlight | LED | |
| IC controller/driver | UC1617 | |
| MPU interface | 8-Bit-MCU, SPI, I²C | |
| Thickness | 4.8 mm | |
| Width | 69 mm | |
| Viewing range (height) | 62.5 mm | |
| Technology | STN blue | |
| Image | negative | |
| Background color | white |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
