DEM 128064J FGH | Display Elektronik
Graphic display, 128 x 64 character, FSTN, viewing area: 70.7 x 38.8 mm, DEM 128064J FGH
Order No.: 73S0110
EAN: 4099891976750
MPN:
DEM 128064J FGH
Unit Price (€ / pc.)
9.2463 € *
Standard delivery time from the manufacturer is: 1 Week

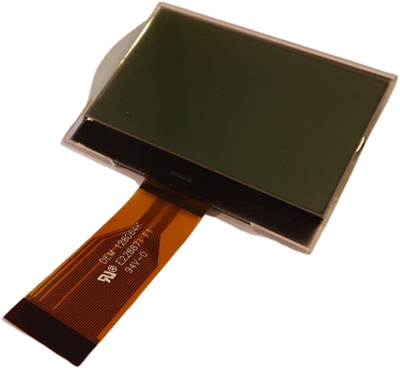

LCD Module, DEM 128064J FGH, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power supply voltage: 3.3 V
- Driver IC: ST7565P (Sitronix)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 50.6 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C | |
| Viewing area (width) | 70.7 mm | |
| Display | 128 x 64 character | |
| type of backlight | without | |
| IC controller/driver | ST7565P | |
| MPU interface | 8-Bit-MCU, SPI | |
| Thickness | 1.95 mm | |
| Width | 76.1 mm | |
| Viewing range (height) | 38.8 mm | |
| Technology | FSTN | |
| Image | positive |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
