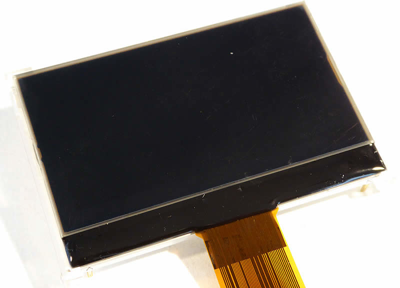

DEM 128064J ADX-PW-N | Display Elektronik
Graphic display, 128 x 64 character, ASTN, viewing area: 70.7 x 38.8 mm, DEM 128064J ADX-PW-N
Order No.: 73S0109
EAN: 4099891976743
MPN:
DEM 128064J ADX-PW-N
Unit Price (€ / pc.)
16.6957 € *
Standard delivery time from the manufacturer is: 1 Week
LCD Module, DEM 128064J ADX-PW-N, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power supply voltage: 3.3 V
- RoHS Compliantt
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 80 °C | |
| IC controller/driver | ST7565P | |
| MPU interface | 8-Bit-MCU, SPI | |
| Technology | ASTN | |
| Viewing range (height) | 38.8 mm | |
| Width | 80 mm | |
| Height | 54 mm | |
| type of backlight | LED | |
| Viewing area (width) | 70.7 mm | |
| Image | negative | |
| Thickness | 6.5 mm | |
| min. operating temperature | -30 °C | |
| Background color | white | |
| Display | 128 x 64 character |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
