DEM 128064D FGH-EG | Display Elektronik
Graphic display, 128 x 64 character, FSTN, viewing area: 44.5 x 30 mm, DEM 128064D FGH-EG
Order No.: 73S0094
EAN: 4099891976590
MPN:
DEM 128064D FGH-EG
Unit Price (€ / pc.)
21.8246 € *
Standard delivery time from the manufacturer is: 1 Week

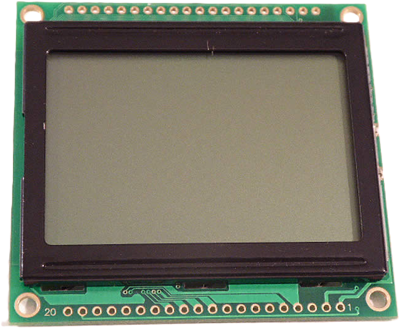

LCD Module, DEM 128064D FGH-EG, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power Supply Voltage: 5.0 Volt
- Backlight color: Blue-Green, EL
- RoHS Compliantt
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 70 °C | |
| IC controller/driver | SBN6400G + SBN0064G | |
| MPU interface | 8-Bit-MCU | |
| Technology | FSTN | |
| Viewing range (height) | 30 mm | |
| Width | 54 mm | |
| Height | 50 mm | |
| type of backlight | EL | |
| Viewing area (width) | 44.5 mm | |
| Image | positive | |
| Thickness | 4.3 mm | |
| min. operating temperature | -20 °C | |
| Background color | blue/green | |
| Display | 128 x 64 character |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
