DEM 122032C SBH-PW-N-12 | Display Elektronik

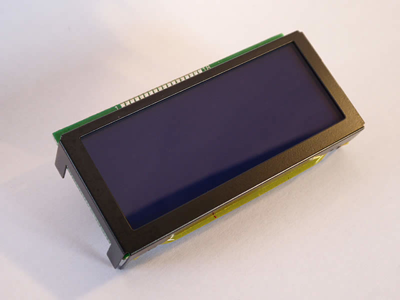

Graphic display, 122 x 32 character, STN blue, viewing area: 59 x 23 mm, DEM 122032C SBH-PW-N-12
Order No.: 73S0080
EAN: 4099891976453
MPN:
DEM 122032C SBH-PW-N-12
Unit Price (€ / pc.)
11.5668 € *
Standard delivery time from the manufacturer is: 1 Week
LCD Module, DEM 122032C SBH-PW-N-12, Display Elektronik
Features
- Viewing direction: 12 O’clock
- Power Supply Voltage: 5.0 V
- Led-Baclöight: White, LED, Long Lifetime
- Interface: Parallel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Viewing area (width) | 59 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Height | 32.9 mm | |
| Technology | STN blue | |
| Thickness | 8.6 mm | |
| IC controller/driver | PT6520 | |
| MPU interface | 8-Bit-MCU | |
| Width | 67 mm | |
| Display | 122 x 32 character | |
| Background color | white | |
| Image | negative | |
| Viewing range (height) | 23 mm | |
| type of backlight | LED |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85249100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
