DEM 122032B SYH-LY | Display Elektronik
Graphic display, 122 x 32 character, STN yellow/green, viewing area: 61 x 19.5 mm, DEM 122032B SYH-LY
Order No.: 73S0078
EAN: 4099891976439
MPN:
DEM 122032B SYH-LY
Unit Price (€ / pc.)
12.8401 € *
Standard delivery time from the manufacturer is: 1 Week

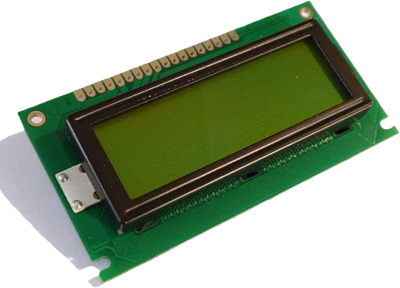

LCD Module, DEM 122032B SYH-LY, Display Elektronik
Features
- Viewing direction: 6 O’clock
- Power Supply Voltage: 5.0 Volt
- Interface: Parallel
- RoHS Compliantt
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 122 x 32 character | |
| Viewing area (width) | 61 mm | |
| Viewing range (height) | 19.5 mm | |
| Technology | STN yellow/green | |
| max. operating temperature | 70 °C | |
| Height | 44 mm | |
| type of backlight | LED | |
| IC controller/driver | PT6520 | |
| Width | 84 mm | |
| min. operating temperature | -20 °C | |
| Background color | yellow/green | |
| Thickness | 9.8 mm | |
| Image | positive | |
| MPU interface | 8-Bit-MCU |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85249100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
