DEM 08202 SYH-LY | Display Elektronik

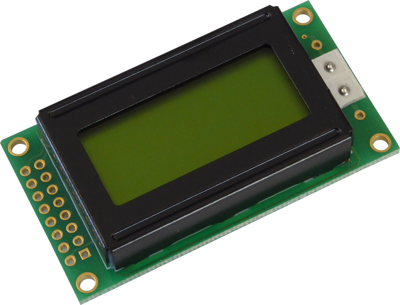

Alphanumeric display, 2 x 8 character, STN yellow/green, viewing area: 35 x 15 mm, DEM 08202 SYH-LY
Order No.: 71S304
EAN: 4099879003744
MPN:
DEM 08202 SYH-LY
Unit Price (€ / pc.)
9.7104 € *
Standard delivery time from the manufacturer is: 1 Week
LCD-Module, DEM 08201 SGH-LY, Display Elektronik
FEATURES
- Power Supply Voltage 5.0 V
- Driving Scheme : 1/16 Duty Cycle, 1/5 Bias
- Viewing Direction: 6 O’clock
- Temperature (-20 °C to 70 °C)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display | 2 x 8 character | |
| Technology | STN yellow/green | |
| Character set | English-Japanese | |
| Character height | 5 mm | |
| Viewing area (width) | 35 mm | |
| Viewing range (height) | 15 mm | |
| type of backlight | LED | |
| Background color | yellow/green | |
| Image | positive | |
| MPU interface | 8-Bit-MCU | |
| IC controller/driver | HD44780 compatible | |
| Thickness | 10.5 mm | |
| Width | 58 mm | |
| Height | 32 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C |
Download
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
