DEM 08201 SGH-LY | Display Elektronik

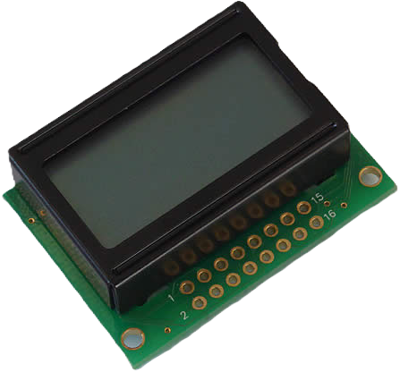

Name: LCD display, 8 x 2 character, STN-gray, viewing area: 31 x 14.5 mm, DEM 08201 SGH-LY
Brand: Display Elektronik
SKU: 73S0001
Availability: InStock

LCD display, 8 x 2 character, STN-gray, viewing area: 31 x 14.5 mm, DEM 08201 SGH-LY

Order No.: 73S0001

EAN: 4099891975661

MPN:

DEM 08201 SGH-LY

Image may differ

Key Specification:

Display 8 x 2 character

Technology STN-gray

Character set English-Japanese

Character height 4.35 mm

Download Datasheet Technical specifications

Unit Price (€ / pc.)

8.0801 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

2,585.63 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

LCD Module, DEM 08201 SGH-LY, Display Elektronik

Features

Viewing direction: 6 O’clock
Power Supply Voltage: 5.0 V
Backlight color: Yellow-Green
RoHS Compliant

Technical specifications

Filter	Property	Value
	Viewing area (width)	31 mm
	max. operating temperature	70 °C
	min. operating temperature	-20 °C
	Height	30.5 mm
	Technology	STN-gray
	Thickness	10.5 mm
	IC controller/driver	HD44780 compatible
	MPU interface	8-Bit-MCU
	Width	40 mm
	Display	8 x 2 character
	Background color	yellow/green
	Character set	English-Japanese
	Image	positive
	Viewing range (height)	14.5 mm
	type of backlight	LED
	Character height	4.35 mm
