DEM 08171 SYH | Display Elektronik

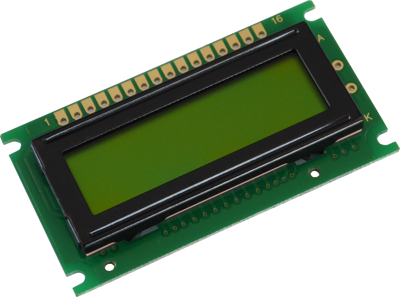

Alphanumeric display, 1 x 8 character, STN yellow/green, viewing area: 44 x 13 mm, DEM 08171 SYH
Order No.: 71S300
EAN: 4099879003713
MPN:
DEM 08171 SYH
Unit Price (€ / pc.)
7.1876 € *
Available: 0 pcs.
Leadtime: On Request **
LCD-Module, DEE 800600A-W, Display Elektronik
FEATURES
- 800 x 600 Pixels Display
- White reflectance above 40%
- Contrast ratio above 8:1
- Wide viewing angle
Technical specifications
| Viewing area (width) | 44 mm | |
| Thickness | 6.2 mm | |
| Image | positive | |
| Technology | STN yellow/green | |
| Width | 60 mm | |
| Height | 33 mm | |
| IC controller/driver | HD44780 compatible | |
| Character set | English-Japanese | |
| min. operating temperature | -20 °C | |
| Character height | 7.93 mm | |
| MPU interface | 8-Bit-MCU | |
| max. operating temperature | 70 °C | |
| type of backlight | without | |
| Display | 1 x 8 character | |
| Viewing range (height) | 13 mm |
Download
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
