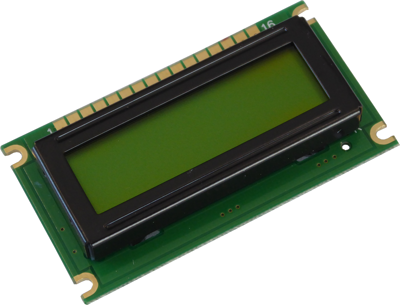

DEM 08171 SYH-LY | Display Elektronik
Alphanumeric display, 1 x 8 character, STN yellow/green, viewing area: 44 x 13 mm, DEM 08171 SYH-LY
Order No.: 71S301
EAN: 4099879003720
MPN:
DEM 08171 SYH-LY
Unit Price (€ / pc.)
7.8778 € *
Available: 123 pcs.
Total Price:
7.88 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8778 €
10 pcs.
7.7469 €
25 pcs.
7.2352 €
50 pcs.
6.7235 €
100 pcs.
6.4617 €
*incl. VAT plus shipping costs
Subject to prior sale
LCD-Module, DEM 08171 SYH-LY, Display Elektronik
FEATURES
- Format: 8x1
- LCD mode: STN,Yellow-Green,Positive,Reflective
- Temperature (-20 °C to 70 °C)
- Storage temperature (-30 °C to 80 °C)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| type of backlight | LED | |
| MPU interface | 8-Bit-MCU | |
| Thickness | 12 mm | |
| Display | 1 x 8 character | |
| Background color | yellow/green | |
| Image | positive | |
| Technology | STN yellow/green | |
| Height | 33 mm | |
| max. operating temperature | 70 °C | |
| Character set | English-Japanese | |
| IC controller/driver | HD44780 compatible | |
| Character height | 7.93 mm | |
| Viewing area (width) | 44 mm | |
| Viewing range (height) | 13 mm | |
| min. operating temperature | -20 °C | |
| Width | 60 mm |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
