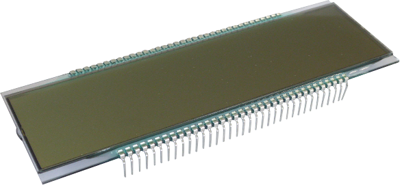

DE 156-TU-30/7,5 | Display Elektronik
LCD display, 6 character, STN, viewing area: 31.8 x 130 mm, DE 156-TU-30/7,5
Unit Price (€ / pc.)
15.4938 € *
Standard delivery time from the manufacturer is: 1 Week
LCD-Module, DE 156-RU-30/7,5, Display Elektronik
FEATURES
- Extended temperature range (-20 °C to +70°C)
- Most panels are available in reflective and transflective version
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| max. operating temperature | 90 °C | |
| Character height | 25.4 mm | |
| Image | positive | |
| Viewing range (height) | 130 mm | |
| type of backlight | LCD | |
| Height | 137 mm | |
| Width | 45.7 mm | |
| Viewing area (width) | 31.8 mm | |
| Technology | STN | |
| Display | 6 character | |
| Thickness | 1.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
