ZPD2.7 | Diotec

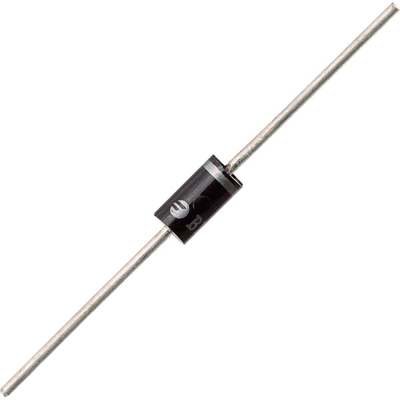

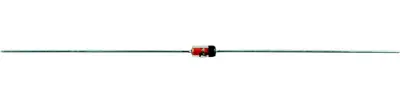

Silicon planar zener diode, 2.7 V, 500 mW, DO-35, ZPD2.7
Unit Price (€ / pc.)
0.0167 € *
Available in 4 Days: 10,000 pcs. - if ordered today
Zener diodes, 500 mW, type Diotec Reihe ZPD.
Power losses: 500 mW. Junction temperature: –50 to +175 °C. Package: DO35.
Technical attributes (type, rated Zener voltage, Zener voltage range, manufacturer): ZPD2.7, 2.7 V, 2.5 to 2.9 V, Diotec
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 175 °C | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 175 °C | |
| Number of diodes | 1 | |
| Version | silicon planar zener diode | |
| Assembly | THT | |
| diameter | 1.9 mm | |
| Junction temperature (min.) | -50 °C | |
| Enclosure | DO-35 | |
| Length | 3.9 mm | |
| Zener voltage | 2.7 V | |
| Power loss | 500 mW |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
| Original Packaging | Ammopack with 10,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Diboron trioxide |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
