BZT52C9V1GW | Diotec

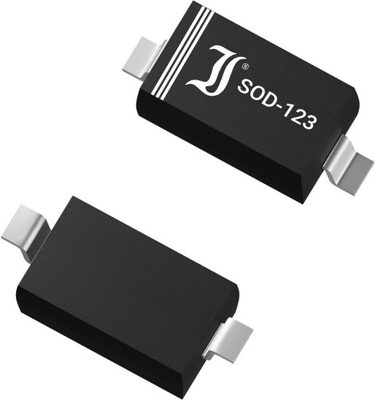

Z-diode, 9.1 V, 0.35 W, SOD-123, BZT52C9V1GW
Unit Price (€ / pc.)
0.0193 € *
Standard delivery time from the manufacturer is: 4 Weeks
Zener Diode, BZT52C9V1GW, Diotec
SMD Planar zener diode voltage stabilization and regulators for overvoltage protection. Standard Zener voltage tolerance is graded to the international E 24 (~ £5%) standard.
Features
- Sharp Zener voltage breakdown
- Low leakage current
- Compliant to RoHS
- Conflict Minerals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | zener diode | |
| Assembly | SMD | |
| Junction temperature (min.) | -50 °C | |
| Enclosure | SOD-123 | |
| min. operating temperature | -50 °C | |
| Power loss | 0.35 W | |
| Junction temperature (max.) | 150 °C | |
| Number of diodes | 1 | |
| Zener voltage | 9.1 V | |
| max. operating temperature | 125 °C | |
| Length | 2.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
