SDA2AK | Diotec

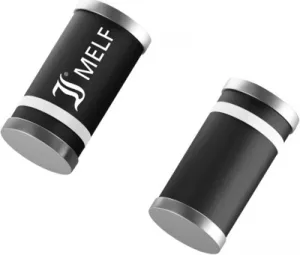

SMD TVS diode, bidirectional, 300 W, 0.5 V, DO-213AB/Melf, Diotec SDA2AK
Unit Price (€ / pc.)
0.3332 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
0.33 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3332 €
100 pcs.
0.2309 €
250 pcs.
0.1987 €
1000 pcs.
0.1321 €
5000 pcs.
0.1057 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Bidirectional diodes, SDA2AK, Diotec
SMD Bidirectional clamping diodes reducing junction capacitance of TVS diodes.
Features
- Bidirectional clamping
- can be switched in series to TVS, to reducethe total capacitance
Applications
- Data line protection
- Reducing junction capacitance of TVS Diodes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Continuous power loss | 1 W | |
| Enclosure | DO-213AB/Melf | |
| Rated blocking voltage | 0.5 V | |
| Breakdown voltage | 0.8 V | |
| Assembly | SMD | |
| Pulse power loss | 300 W | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -50 °C | |
| Version | bidirectional |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | SI |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
