P6SMB210A | Diotec

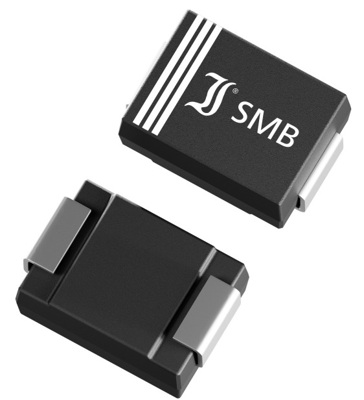

SMD TVS diode, unidirectional, 600 W, 180 V, DO-214AA/SMB, Diotec P6SMB210A

Order No.: 66S1430
MPN:
P6SMB210A
Series: P6SMB
P6SMB210A Diotec TVS Diodes
Image may differ
Unit Price (€ / pc.)
0.0938 € *
Available in 4 Days: 3,000 pcs. - if ordered today
Total Price:
281.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
0.0938 €

SMD Transient Diode, P6SMB210A, Diotec

SMD Transient voltage suppressor diode for bidirectional types (suffix “CA”), electrical characteristics apply in both directions.

Features

  • Peak pulse power of 600 W
  • Very fast response time
  • Compliant to RoHS

Applications

  • Over-voltage protection
  • ESD protection
  • Zener diodes
  • Free-wheeling diodes
  • Commercial / industrial grade
Technical specifications
Filter Property Value
Rated blocking voltage 180 V
Pulse power loss 600 W
Breakdown voltage 201 V
min. operating temperature -50 °C
max. operating temperature 150 °C
Assembly SMD
Version unidirectional
Continuous power loss 5 W
Enclosure DO-214AA/SMB
Logistics
Property Value
Country of origin CN
Customs tariff number 85411000
MSL MSL 1
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
