P6SMB200A | Diotec

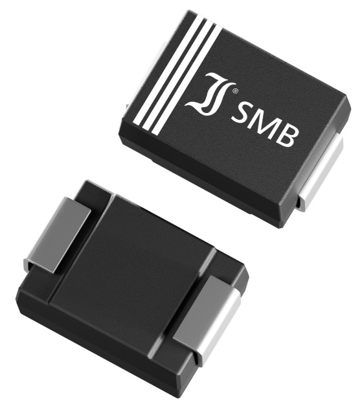

SMD TVS diode, unidirectional, 600 W, 170 V, DO-214AA/SMB, Diotec P6SMB200A
Unit Price (€ / pc.)
0.0923 € *
Standard delivery time from the manufacturer is: On Request
SMD Transient Diode, P6SMB200A, Diotec
SMD Transient voltage suppressor diode for bidirectional types (suffix “CA”), electrical characteristics apply in both directions.
Features
- Peak pulse power of 600 W
- Very fast response time
- Compliant to RoHS
Applications
- Over-voltage protection
- ESD protection
- Zener diodes
- Free-wheeling diodes
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pulse power loss | 600 W | |
| Version | unidirectional | |
| Assembly | SMD | |
| Enclosure | DO-214AA/SMB | |
| min. operating temperature | -50 °C | |
| Continuous power loss | 5 W | |
| Rated blocking voltage | 170 V | |
| Breakdown voltage | 189 V | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
