P6SMAJ40CA | Diotec

SMD TVS diode, bidirectional, 500 W, 40 V, DO-214AC/SMA, Diotec P6SMAJ40CA

Order No.: 66S1420
MPN:
P6SMAJ40CA
Series: P6SMAJ
P6SMAJ40CA Diotec TVS Diodes

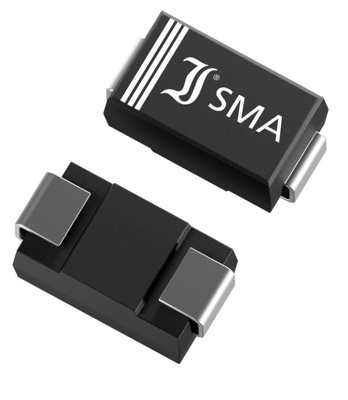

Image may differ
Unit Price (€ / pc.)
0.0657 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
492.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
7500 pcs.
0.0657 €

SMD Transient Diode, P6SMAJ40CA, Diotec

SMD Transient voltage suppressor diode for bidirectional types (suffix “C” or “CA”), electrical characteristics apply in both directions.

Features

  • Peak pulse power of 500 W
  • Very fast response time
  • Compliant to RoHS

Applications

  • Over-voltage protection
  • ESD protection
  • Free-wheeling diodes
  • Commercial / industrial grade
Technical specifications
Filter Property Value
Pulse power loss 500 W
Version bidirectional
Assembly SMD
Enclosure DO-214AC/SMA
min. operating temperature -50 °C
Continuous power loss 5 W
Rated blocking voltage 40 V
Breakdown voltage 44.4 V
max. operating temperature 150 °C
Logistics
Property Value
MSL MSL 1
Customs tariff number 85411000
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
