P6SMAJ33CA | Diotec

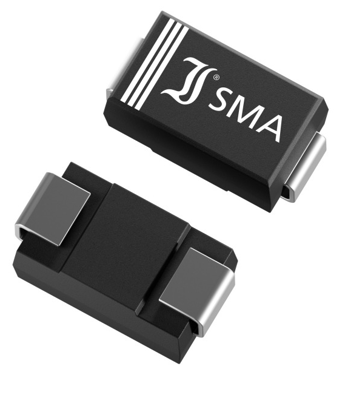

SMD TVS diode, bidirectional, 500 W, 33 V, DO-214AC/SMA, Diotec P6SMAJ33CA
Unit Price (€ / pc.)
0.2630 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
2.63 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2630 €
100 pcs.
0.1642 €
250 pcs.
0.0985 €
1000 pcs.
0.0657 €
7500 pcs.
0.0526 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Transient Diode, P6SMAJ33CA, Diotec
Features
- Peak pulse power of 500 W
- Very fast response time
Applications
- Over-voltage protection
- ESD protection
- Free-wheeling diodes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Continuous power loss | 5 W | |
| Enclosure | DO-214AC/SMA | |
| Rated blocking voltage | 33 V | |
| Breakdown voltage | 36.7 V | |
| Assembly | SMD | |
| Pulse power loss | 500 W | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Version | bidirectional |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | DE |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
