P6KE68CA-AQ | Diotec

TVS diode, bidirectional, 600 W, 58.1 V, DO-15, Diotec P6KE68CA-AQ

Order No.: 66S1406
MPN:
P6KE68CA-AQ
Series: P6KE
P6KE68CA-AQ Diotec TVS Diodes

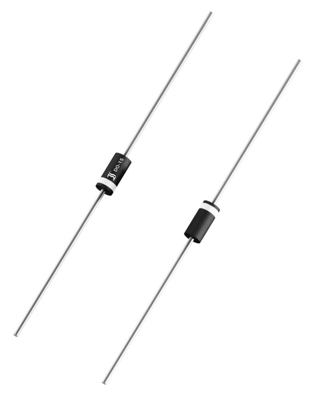

Image may differ
Unit Price (€ / pc.)
0.1416 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
566.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.1416 €

Transient Diode, P6KE68CA-AQ, Diotec

Transient diode for bidirectional types (add suffix “CA”), electrical characteristics apply in both directions.

Features

  • Peak pulse power of 600 W
  • Very fast response time
  • Compliant to RoHS

Applications

  • Over-voltage protection
  • ESD protection
  • Free-wheeling diodes
  • Commercial / industrial grade
Technical specifications
Filter Property Value
Pulse power loss 600 W
Version bidirectional
Assembly THT
Enclosure DO-15
min. operating temperature -50 °C
Continuous power loss 5 W
Rated blocking voltage 58.1 V
Breakdown voltage 64.6 V
max. operating temperature 175 °C
Logistics
Property Value
Customs tariff number 85411000
Country of origin CN
Original Packaging Ammopack with 4,000 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
