P6KE100A | Diotec

TVS diode, unidirectional, 600 W, 85.5 V, DO-15, Diotec P6KE100A

Order No.: 66S1376
MPN:
P6KE100A
Series: P6KE
P6KE100A Diotec TVS Diodes

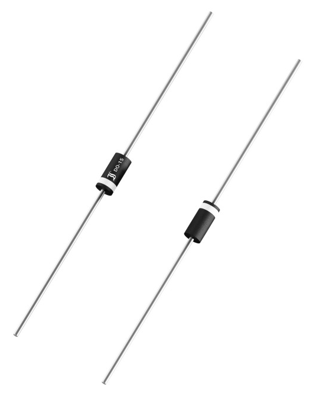

Image may differ
Unit Price (€ / pc.)
0.1090 € *
Available in 4 Days: 4,000 pcs. - if ordered today
Total Price:
436.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.1090 €

Transient Diode, P6KE100A, Diotec

Transient diode for bidirectional types (add suffix “CA”), electrical characteristics apply in both directions.

Features

  • Peak pulse power of 600 W
  • Very fast response time
  • Compliant to RoHS

Applications

  • Over-voltage protection
  • ESD protection
  • Free-wheeling diodes
  • Commercial / industrial grade
Technical specifications
Filter Property Value
Rated blocking voltage 85.5 V
Pulse power loss 600 W
Breakdown voltage 95 V
min. operating temperature -50 °C
max. operating temperature 175 °C
Assembly THT
Version unidirectional
Continuous power loss 5 W
Enclosure DO-15
Logistics
Property Value
Country of origin CN
Customs tariff number 85411000
Original Packaging Ammopack with 4,000 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
