6.6SM8Z30A-AQ | Diotec

SMD TVS diode, unidirectional, 6600 W, 30 V, DO-218AB, Diotec 6.6SM8Z30A-AQ

Order No.: 66S1124
MPN:
6.6SM8Z30A-AQ
Series: 6.6SM
6.6SM8Z30A-AQ Diotec TVS Diodes

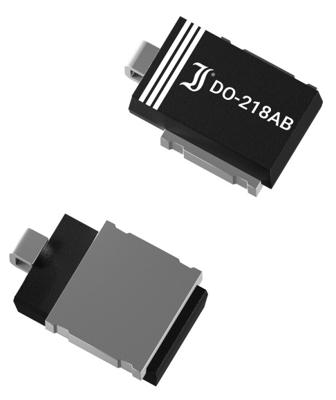

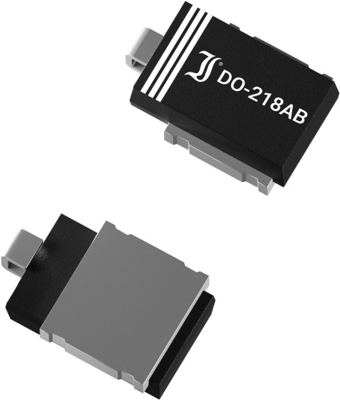

Image may differ
Unit Price (€ / pc.)
1.2376 € *
Available in 4 Days: 15,000 pcs. - if ordered today
Total Price:
928.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
750 pcs.
1.2376 €

SMD Transient Diode, 6.6SM8Z30A-AQ, Diotec

SMD Transient voltage suppresssor diode

Features

  • Peak pulse power of 6600 W
  • Very fast response time
  • Unidirectional clamping
  • Compliant to RoHS

Applications

  • Over-voltage protection
  • Load-dump protection in automotive supply
  • Commercial / industrial grade
Technical specifications
Filter Property Value
Rated blocking voltage 30 V
Pulse power loss 6600 W
Breakdown voltage 33.3 V
min. operating temperature -50 °C
max. operating temperature 175 °C
Assembly SMD
Version unidirectional
Continuous power loss 8 W
Enclosure DO-218AB
Logistics
Property Value
Country of origin TW
Customs tariff number 85411000
MSL MSL 1
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
