5KP70CA | Diotec

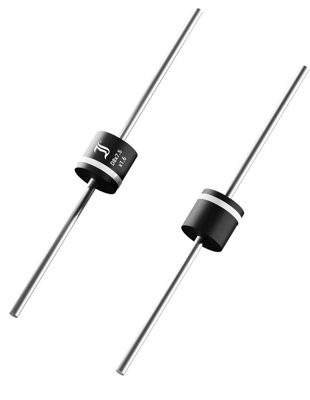

TVS diode, bidirectional, 5000 W, 70 V, D8x7.5, Diotec 5KP70CA
Unit Price (€ / pc.)
0.4641 € *
Available in 4 Days: 1,000 pcs. - if ordered today
Transient Diode, 5KP70CA, Diotec
Transient voltage suppressor diode for bidirectional types (suffix “CA”), electrical characteristics apply in both directions.
Features
- Peak pulse power of 5000 W
- Very fast response time
- Compliant to RoHS
Applications
- Over-voltage protection
- Free-wheeling diodes
- Load-dump protection in automotive supply
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Continuous power loss | 8 W | |
| max. operating temperature | 175 °C | |
| Version | bidirectional | |
| Assembly | THT | |
| Breakdown voltage | 77.8 V | |
| Pulse power loss | 5000 W | |
| Enclosure | D8x7.5 | |
| Rated blocking voltage | 70 V | |
| min. operating temperature | -50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ammopack with 500 pieces |
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
