5.0SMCJ20CA-AQ | Diotec

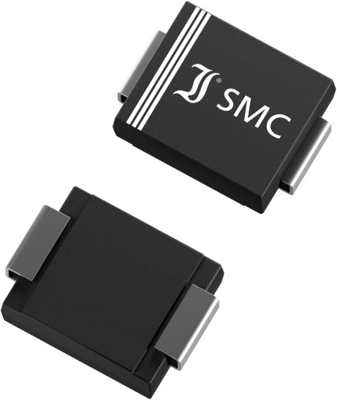

SMD TVS diode, bidirectional, 5000 W, 20 V, DO-214AB/SMC, Diotec 5.0SMCJ20CA-AQ
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 4 Weeks
SMD Transient Diode, 5.0SMCJ20CA-AQ, Diotec
SMD Transient voltage suppressor diode for bidirectional types (suffix “CA”), electrical characteristics apply in both directions.
Features
- Peak pulse power of 5000 W
- Very fast response time
- Compliant to RoHS
Applications
- Over-voltage protection
- ESD protection
- Zener diodes
- Free-wheeling diodes
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Continuous power loss | 6 W | |
| max. operating temperature | 150 °C | |
| Version | bidirectional | |
| Assembly | SMD | |
| Breakdown voltage | 22.2 V | |
| Pulse power loss | 5000 W | |
| Enclosure | DO-214AB/SMC | |
| Rated blocking voltage | 20 V | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
