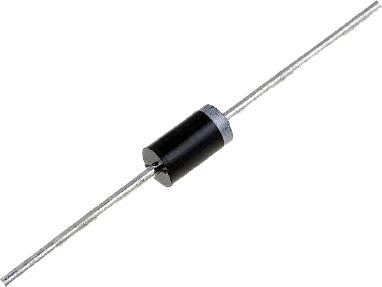

1.5KE15A | Diotec
TVS diode, unidirectional, 1.5 kW, 12.8 V, DO-201, Diotec 1.5KE15A
Unit Price (€ / pc.)
0.4403 € *
Available: 1,112 pcs.
Available in 4 Days: 2,500 pcs. - if ordered today
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4403 €
50 pcs.
0.3808 €
250 pcs.
0.3451 €
1250 pcs.
0.3023 €
2500 pcs.
0.2689 €
*incl. VAT plus shipping costs
Subject to prior sale
Features
- Peak pulse power of 1500 W
- Very fast response time
Applications
- Over-voltage protection
- ESD protection
- Free-wheeling diodes
- Zener diodes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breakdown voltage | 15 V | |
| Rated blocking voltage | 12.8 V | |
| min. operating temperature | -50 °C | |
| Enclosure | DO-201 | |
| Pulse power loss | 1.5 kW | |
| Assembly | THT | |
| Version | unidirectional | |
| Continuous power loss | 6.5 W | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
