LL4448 | Diotec

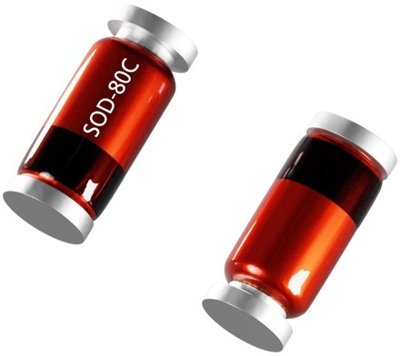

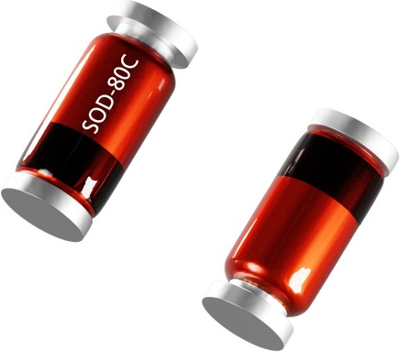

Small signal diode, single, 100 V, SOD-80C, Diotec LL4448
Unit Price (€ / pc.)
0.0464 € *
Available: 1,273 pcs.
Available in 4 Days: 842,500 pcs. - if ordered today
Total Price:
0.05 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0464 €
10 pcs.
0.0190 €
100 pcs.
0.0155 €
500 pcs.
0.0143 €
1000 pcs.
0.0131 €
*incl. VAT plus shipping costs
Subject to prior sale
Switching diode, LL4448, Diotec
The LL4448 is a SMD Small signal switching diode with high-speed switching.
Features
- Low junction capacity
- Low leakage current
- Compliant to RoHS
Applications
- Signal processing
- Commercial/industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| max. operating temperature | 175 °C | |
| Rated blocking voltage | 100 V | |
| Version | single | |
| Number of diodes | 1 | |
| Enclosure | SOD-80C | |
| min. operating temperature | -65 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 1 piece |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Substance description | Diboron trioxide |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
