Schottky rectifier diode, 90 V (RRM), 1 A, DO-213AB, SMS 190
Unit Price (€ / pc.)
0.0992 € *
Standard delivery time from the manufacturer is: On Request

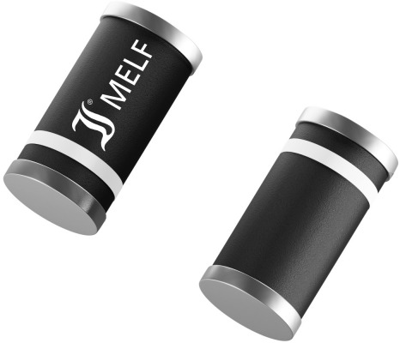

Schottky diode, SMS 190, Diotec
SMD Schottky barrier rectifier diode.
Features
- Low forward voltage drop
- High power dissipation
- Compliant to RoHS
Applications
- Output rectification in DC/DC converters
- Polarity protection
- Free-wheeling diodes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | schottky rectifier diode | |

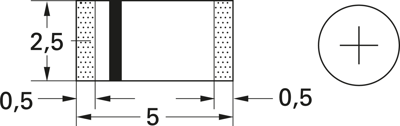

| Enclosure | DO-213AB | |
| Number of diodes | 1 | |
| Voltage V RRM (peak reverse voltage) | 90 V | |
| Surge blocking voltage V RMS | 90 V | |
| Forward Current | 1 A | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 150 °C | |
| Capacity | 40 pF | |
| Assembly | SMD | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | SI |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
