SGL1-90 | Diotec

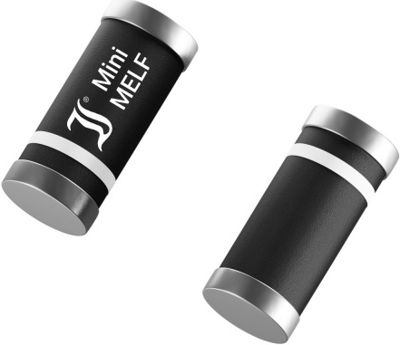

Schottky diode, 90 V (RRM), 1 A, DO-213AA, SGL1-90
Unit Price (€ / pc.)
0.0764 € *
Standard delivery time from the manufacturer is: 4 Weeks
SMD Schottky Diode, SGL1-90, Diotec
SMD Schottky barrier rectifier diode
Features
- Low forward voltage drop
- High power dissipation
- Compliant to RoHS
Applications
- Output Rectification in DC/DC Converters
- Polarity Protection
- Free-wheeling diodes
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| Version | schottky rectifier diode | |
| Junction temperature (min.) | -50 °C | |
| Assembly | SMD | |
| Surge blocking voltage V RMS | 90 V | |
| Enclosure | DO-213AA | |
| Junction temperature (max.) | 150 °C | |
| Voltage V RRM (peak reverse voltage) | 90 V | |
| Number of diodes | 1 | |
| Forward Current | 1 A | |
| min. operating temperature | -50 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
| Country of origin | IN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
