SB540 | Diotec

Schottky diode, 40 V (RRM), 5 A, DO-201, SB540

Order No.: 24S6672
EAN: 4099879045706
MPN:
SB540
Series: SB..

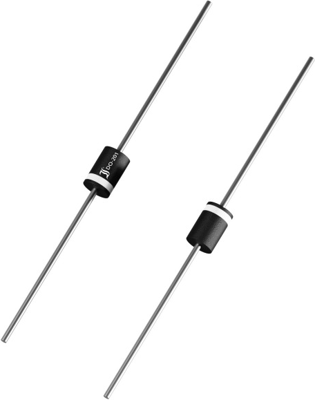

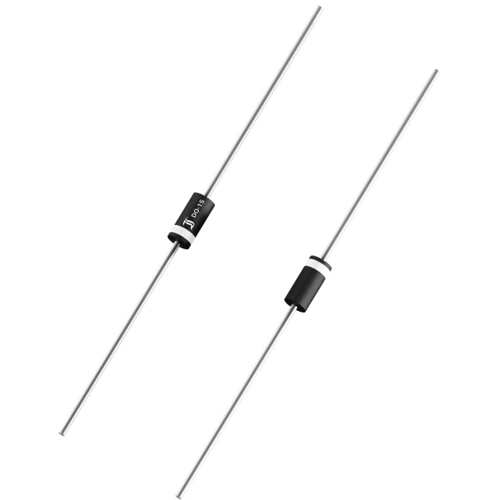

SB540 Diotec Schottky Diodes
Image may differ
Unit Price (€ / pc.)
0.1666 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
283.22 € *
*incl. VAT plus shipping costs
Subject to prior sale
1700 pcs.
0.1666 €

Schottky diode, SB540, Diotec

Schottky barrier rectifier diode.

Features

  • Low forward voltage drop
  • Compliant to RoHS

Applications

  • Output rectification in DC/DC converters
  • Polarity protection
  • Free-wheeling diodes
Technical specifications
Filter Property Value
Version schottky rectifier diode
Assembly THT
Junction temperature (min.) -50 °C
Enclosure DO-201
Surge blocking voltage V RMS 40 V
min. operating temperature -50 °C
Junction temperature (max.) 150 °C
Number of diodes 1
max. operating temperature 175 °C
Forward Current 5 A
Voltage V RRM (peak reverse voltage) 40 V
Logistics
Property Value
Customs tariff number 85411000
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
