PPS5100 | Diotec
Schottky rectifier diode, 100 V (RRM), 5 A, PowerSMD, PPS5100
Unit Price (€ / pc.)
0.1690 € *
Standard delivery time from the manufacturer is: On Request
Schottky diode, PPS5100, Diotec
SMD Schottky barrier rectifier diode.
Features
- Low forward voltage drop
- High power dissipation
- Low profile package
- Compliant to RoHS
Applications
- Output rectification in DC/DC converters and offline power supplies
- Polarity protection applications
- Free-wheeling diodes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | schottky rectifier diode | |

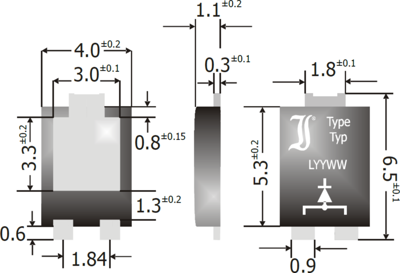

| Enclosure | PowerSMD | |
| Number of diodes | 1 | |
| Voltage V RRM (peak reverse voltage) | 100 V | |
| Surge blocking voltage V RMS | 100 V | |
| Forward Current | 5 A | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 150 °C | |
| Capacity | 200 pF | |
| Assembly | SMD | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
