PPS1045-AQ | Diotec

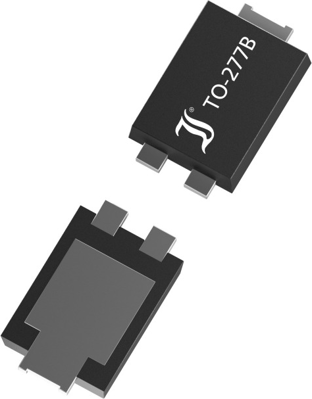

Schottky diode, 45 V (RRM), 10 A, TO-277B, PPS1045-AQ
Unit Price (€ / pc.)
0.2273 € *
Standard delivery time from the manufacturer is: On Request
Schottky, PPS1045-AQ, Diotec
Schottky, TO-277B, 45V, 10A, 150°C, AEC-Q101
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | schottky rectifier diode | |
| Enclosure | TO-277B | |
| Number of diodes | 1 | |
| Voltage V RRM (peak reverse voltage) | 45 V | |
| Surge blocking voltage V RMS | 45 V | |
| Forward Current | 10 A | |
| Junction temperature (min.) | -50 °C | |
| Junction temperature (max.) | 150 °C | |
| Capacity | 570 pF | |
| Assembly | SMD | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 5,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
