BAT46W | Diotec

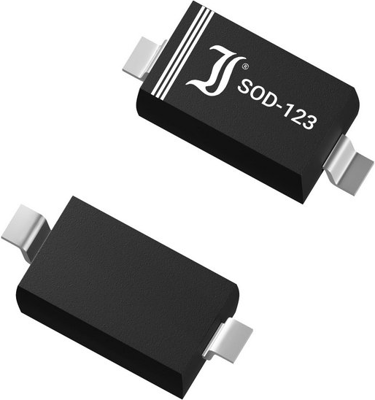

Schottky diode, 100 V (RRM), 150 mA, SOD-123, BAT46W
Unit Price (€ / pc.)
0.0248 € *
Available in 4 Days: 810,000 pcs. - if ordered today
SMD Schottky Diode, BAT46W, Diotec
SMD Small signal schottky diode
Features
- Very high switching speed
- Low junction capacitance
- Low leakage current
- Compliant to RoHS
Applications
- Signal processing
- High-speed switching
- Polarity Protection
- Commercial / industrial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 125 °C | |
| Assembly | SMD | |
| max. operating temperature | 150 °C | |
| Version | small signal schottky diode | |
| Number of diodes | 1 | |
| Forward Current | 150 mA | |
| Enclosure | SOD-123 | |
| Voltage V RRM (peak reverse voltage) | 100 V | |
| min. operating temperature | -55 °C | |
| Surge blocking voltage V RMS | 100 V | |
| Junction temperature (min.) | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
