BAS40 | Diotec

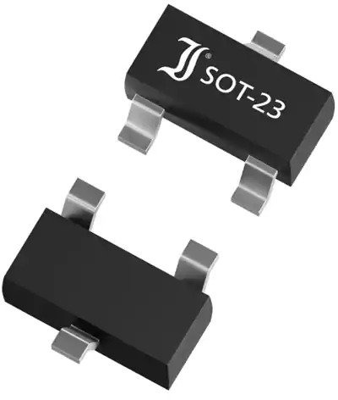

Schottky rectifier diode, 40 V (RRM), 0.2 A, SOT-23, BAS40
Order No.: 09S3899
EAN: 4099879044211
MPN:
BAS40
Unit Price (€ / pc.)
0.0214 € *
Available in 4 Days: 243,000 pcs. - if ordered today
Schottky diode, BAS40, Diotec
SMD small signal Schottky diode.
Features
- High switching speed
- Low junction capacitance
- Low leakage current
- Compliant to RoHS
Applications
- Signal processing
- High-speed switching
- Polarity protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Capacity | 5 pF | |
| Junction temperature (max.) | 150 °C | |
| Enclosure | SOT-23 | |
| Junction temperature (min.) | -55 °C | |
| Forward Current | 0.2 A | |
| Voltage V RRM (peak reverse voltage) | 40 V | |
| Version | schottky rectifier diode | |
| Number of diodes | 1 | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| SVHC free | No |
