SM5408 | Diotec
Rectifier diode, 1000 V, 3 A, DO-213AB, SM5408
Unit Price (€ / pc.)
0.2606 € *
Available: 4,898 pcs.
Total Price:
2.61 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2606 €
100 pcs.
0.2202 €
500 pcs.
0.1737 €
1000 pcs.
0.1452 €
2500 pcs.
0.1154 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD rectifier diodes, type Diotec SM54.

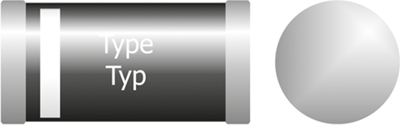

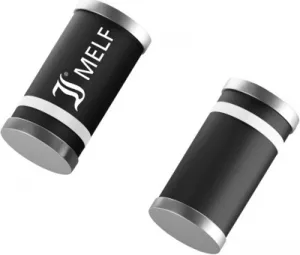

Standard reverse recovery, for 50/60 Hz line rectification, power supplies, polarity reversal protection; Package: DO213AB (MELF). Package material: UL 94 V-0. Junction temperature: –50 to +175 °C.
Technical attributes (type, periodic peak reverse voltage, limiting value of mean on-state current): SM5408, 1000 V, 3.0 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 175 °C | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -50 °C | |
| Assembly | SMD | |
| Junction temperature (min.) | -50 °C | |
| Surge blocking voltage V RMS | 1000 V | |
| Forward Current | 3 A | |
| Version | silicon diode | |
| Enclosure | DO-213AB | |
| Voltage V RRM (peak reverse voltage) | 1000 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 1 piece |
| Country of origin | SI |
Compliance
| Property | Value |
|---|---|
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
