SA156 | Diotec
Fast SMD rectifier diode, 200 V, 1 A, DO-213AB, SA156
Unit Price (€ / pc.)
0.0526 € *
Standard delivery time from the manufacturer is: On Request
SMD rectifier diodes, type Diotec SA.

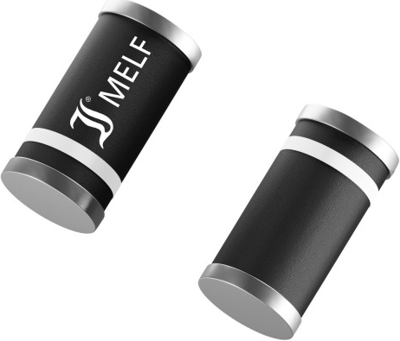

Fast reverse recovery, for the rectification of mid-range frequencies; Package: DO213AB (MELF). Package material: UL 94 V-0. Junction temperature: –50 to +175° C.
Technical attributes (type, periodic peak reverse voltage, limiting value of mean on-state current): SA156, 200 V, 1.0 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -50 °C | |
| Forward Current | 1 A | |
| Junction temperature (max.) | 175 °C | |
| max. operating temperature | 175 °C | |
| Junction temperature (min.) | -50 °C | |
| Version | fast recovery diode | |
| Voltage V RRM (peak reverse voltage) | 200 V | |
| Assembly | SMD | |
| Enclosure | DO-213AB | |
| Surge blocking voltage V RMS | 200 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Country of origin | SI |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
