S1G | Diotec

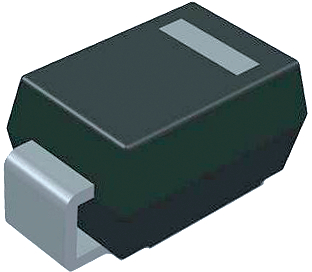

Rectifier diode, 400 V, 1 A, DO-214AC, S1G
Unit Price (€ / pc.)
0.0923 € *
Available in 4 Days: 2,722,500 pcs. - if ordered today
Total Price:
0.92 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0923 €
100 pcs.
0.0577 €
250 pcs.
0.0346 €
1000 pcs.
0.0231 €
7500 pcs.
0.0184 €
*incl. VAT plus shipping costs
Subject to prior sale
Diodes series S.
Type: S1G, DO214AC, Diotec
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated blocking voltage | 320 V | |
| Junction temperature (max.) | 150 °C | |
| Forward Current | 1 A | |
| max. operating temperature | 150 °C | |
| Voltage V RRM (peak reverse voltage) | 400 V | |
| Assembly | SMD | |
| min. operating temperature | -50 °C | |
| Surge blocking voltage V RMS | 400 V | |
| Enclosure | DO-214AC | |
| Junction temperature (min.) | -50 °C | |
| Version | standard recovery diode |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 1 piece |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
