P600M | Diotec

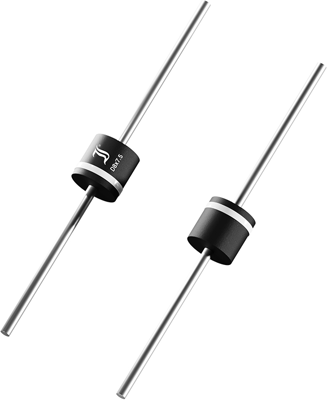

Rectifier diode, 1000 V, 6 A, D8x7.5, P600M

Order No.: 09S5228
MPN:
P600M
Series: P600
P600M Diotec Rectifier Diodes
Image may differ
Unit Price (€ / pc.)
0.1202 € *
Available in 4 Days: 86,500 pcs. - if ordered today
Total Price:
120.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.1202 €

Standard Rectifier Diode, P600M, Diotec

Standard Recovery Rectifier Diode

Features

  • Compliant to RoHS

Applications

  • 50/60 Hz Mains Rectification
  • Power Supplies
  • Polarity Protection
  • Commercial / industrial grade
Technical specifications
Filter Property Value
Junction temperature (max.) 175 °C
Assembly THT
max. operating temperature 175 °C
Version rectifier diode
Number of diodes 1
Forward Current 6 A
Enclosure D8x7.5
Voltage V RRM (peak reverse voltage) 1000 V
min. operating temperature -50 °C
Surge blocking voltage V RMS 1000 V
Junction temperature (min.) -50 °C
Logistics
Property Value
Country of origin CN
Original Packaging Ammopack with 500 pieces
Customs tariff number 85411000
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
